SCS 3, 3-way splitter, 2.4GHz Art. Number 349823
 |

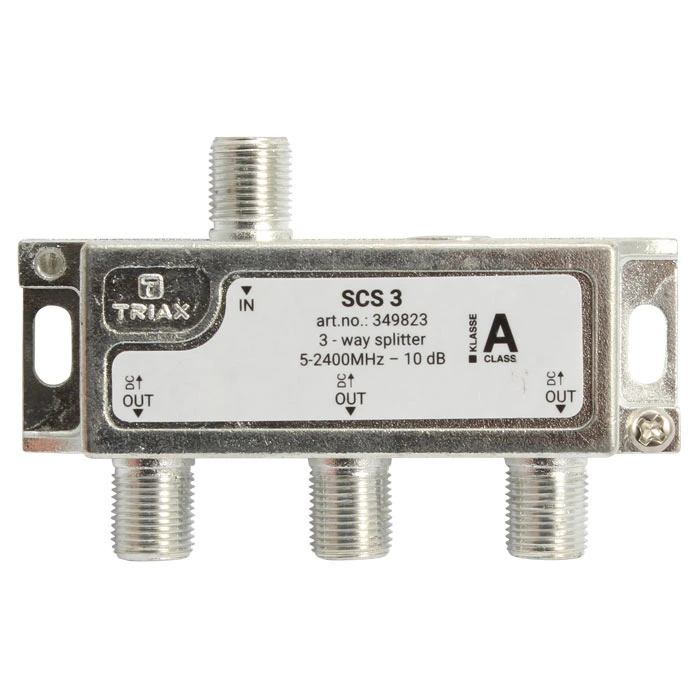

SCS 3 – 3 way splitter
TRIAX coaxial splitter ideal for SAT-IF and MATV distribution networks.
-
Frequency range 5-2400 MHz
-
DC pass via diodes from all outputs
-
High shielding against ingress noise like radiated by LTE mobile
-
High quality die-cast housing tin (Sn) coated with solder shield bottom plate
-
Grounding clamp terminals
Technical Specifications
|
ORDER INFORMATION |
|
|
EAN Number |
5702663498235 |
|
SHIELDING |
|
|
Shielding effeciency VHF/UHF | dB |
>85 dB |
|
CHARACTERISTICS |
|
|
FREQUENCY RANGE |
|
|
Frequency range | MHz |
5…2400 MHz |
|
LOSS |
|
|
Insertion loss (in-out) 1000-2150 MHz | dB |
10.0 dB |
|
Insertion loss (in-out) 2150-2400 Mhz | dB |
10.5 dB |
|
Insertion loss (in-out) 40-1000 Mhz | dB |
7.5 dB |
|
Insertion loss (in-out) 5-40 Mhz | dB |
6.5 dB |
|
ISOLATION |
|
|
Isolation (tap-tap) 1000-2150 MHz | dB |
23 dB |
|
Isolation (tap-tap) 2150-2400 MHz | dB |
23 dB |
|
Isolation (tap-tap) 40-1000 MHz | dB |
22 dB |
|
Isolation (tap-tap) 5-40 MHz | dB |
23 dB |
Technical Specifications
RETURN LOSS
|
Return loss (in-out) 1000-2150 MHz | dB |
13.0 |
dB |
|
Return loss (in-out) 2150-2400 MHz | dB |
13.0 |
dB |
|
Return loss (in-out) 40-1000 MHz | dB |
12.0 |
dB |
|
Return loss (in-out) 5-40 MHz | dB |
10.0 |
dB |
ELECTRICAL
OPERATIONAL
Impedance | Ω
Application Certification
DC Passthrough Screening Efficiency Environment
CONNECTORS
Temperature – operating | °C
MECHANICAL
Connector Type Number of inputs Number of outputs
Product Depth | mm
75 Ω
SAT-IF, MATV 2.4Ghz +DC(out->in) EN 50581:2012 (RoHS II)
Yes (max. 0.5A/24V) EN50083-2 (Class A)
Indoor -30…+60 °C
F-female (IEC 61 169-24) 17 mm
|
Packaging Depth | m |
0.017 |
m |
|
Packaging Height | m |
0.074 |
m |
|
Total Weight | kg |
0.053 |
kg |
|
Packaging Width | m |
0.047 |
m |
Product Height | mm Main material
Net Weight | kg Packaging Packing QTY Tara Weight | kg
Packaging Volume | m3 Product Width | mm 47 mm
Zinc diecast/Sn plated
0.050 kg
Polybag 1
0.003 kg
0.000 m3
74 mm
